The CB climbing system provides safe working conditions with wall formwork at all heights.

CB Climbing Formwork

Crane-movable climbing units with platform bracket for large-sized wall formwork

CB Climbing Formwork is the ideal system for supporting large-sized, anchored wall formwork. The climbing unit consists of formwork, a working platform, brackets with formwork carriage and strongbacks, and a finishing platform. It can be moved very quickly by crane to provide a reliable, efficient and intuitive solution for core and other structures.

CB Climbing Formwork in action

  • the tank during it 4th cycle.

    A robust system

    Providing high-load capacity and generous working space

    A safe and hazard-free working environment at height

    Working in and around the formwork system is safe thanks to the spacious platforms and open and clear working deck

Benefits

Variations

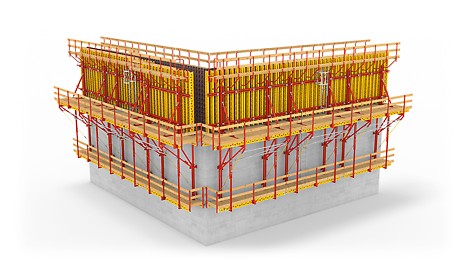

CB 240 Climbing Formwork bracket width 2.40m with carriage (75cm retraction distance), strongback and an adjustable brace

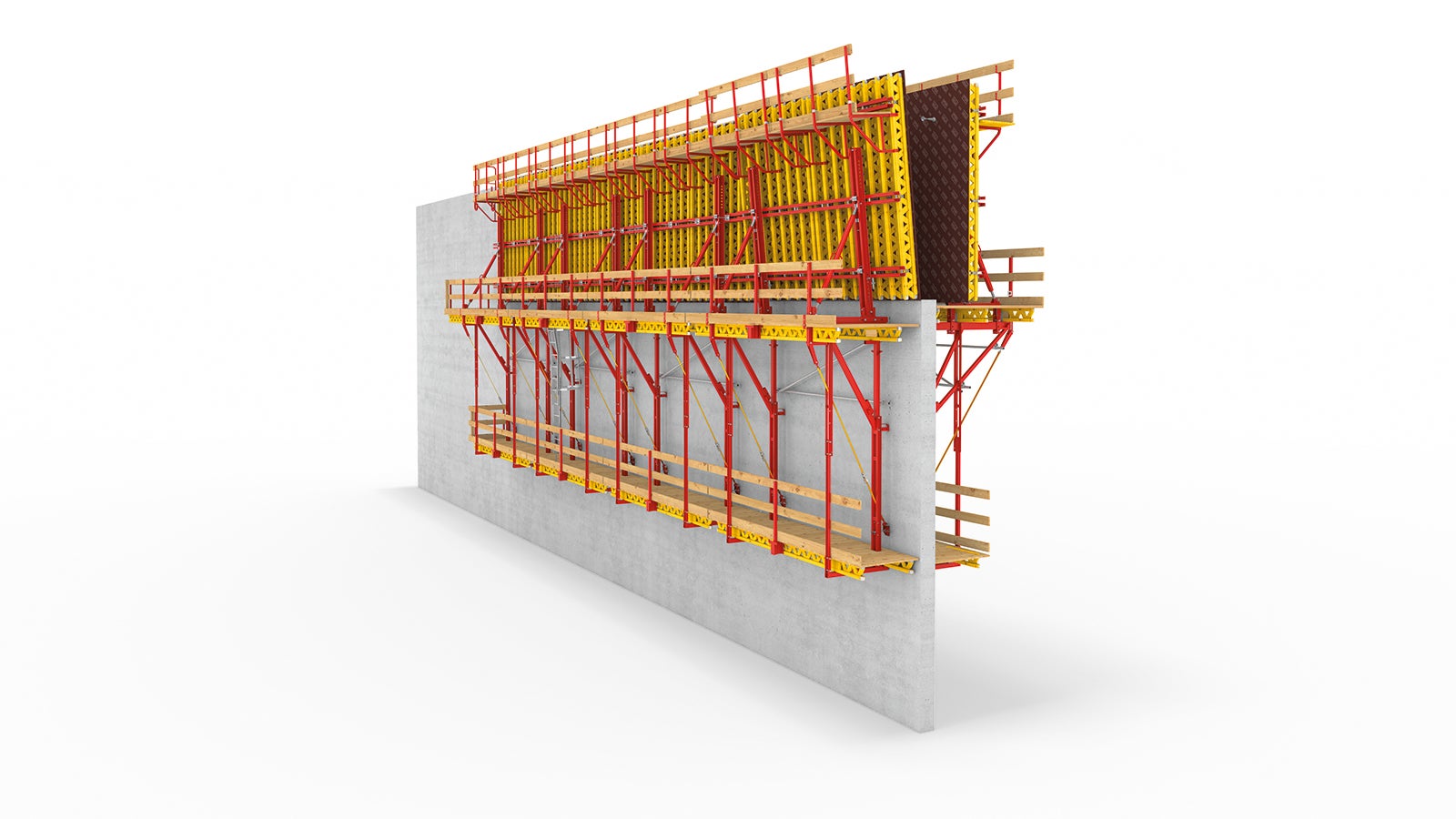

CB 160 Climbing Formwork bracket width 1.60m with adjusting unit, strongback and adjustable brace
