The CAD program for professional work preparation

PERI CAD 24 Software

The CAD program for formwork and scaffolding planning

PERI CAD is the ideal professional tool for experienced CAD design engineers and construction professionals to perform a wide range of tasks in formwork and scaffolding planning – from simple ground plans with standard systems through to sophisticated solutions for complex civil engineering structures.



PERI CAD in action

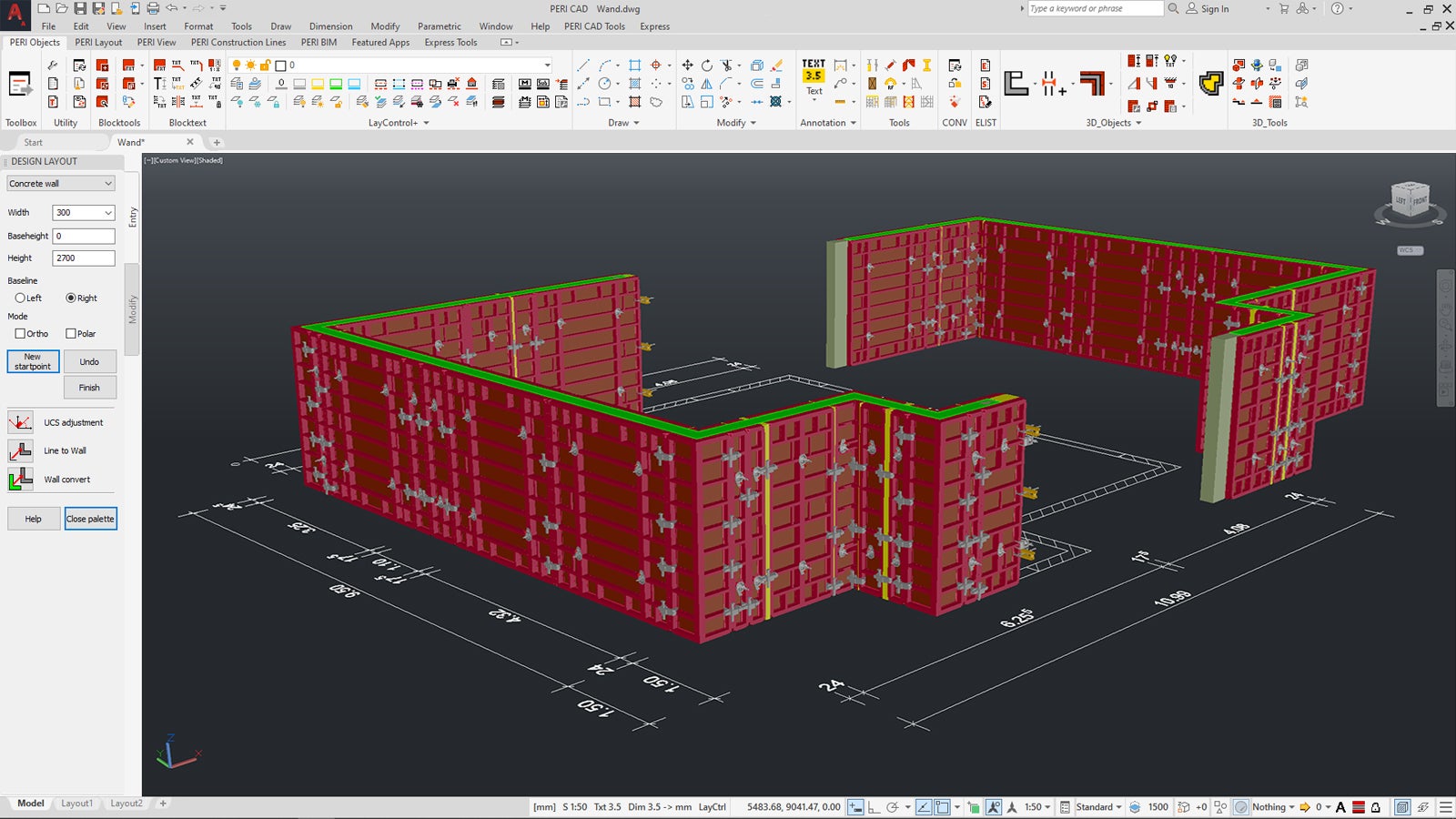

  • Automatic solutions are available to perform design with a wide range of wall formwork systems.
    Detailed planning

    of simple and complex structures

  • Find the PERI components in the PERI CAD Center you need to generate your individual formwork design in 3D.
    Rich designs

    clarity and detailed drawing style thanks to 3D design and 3D visualization

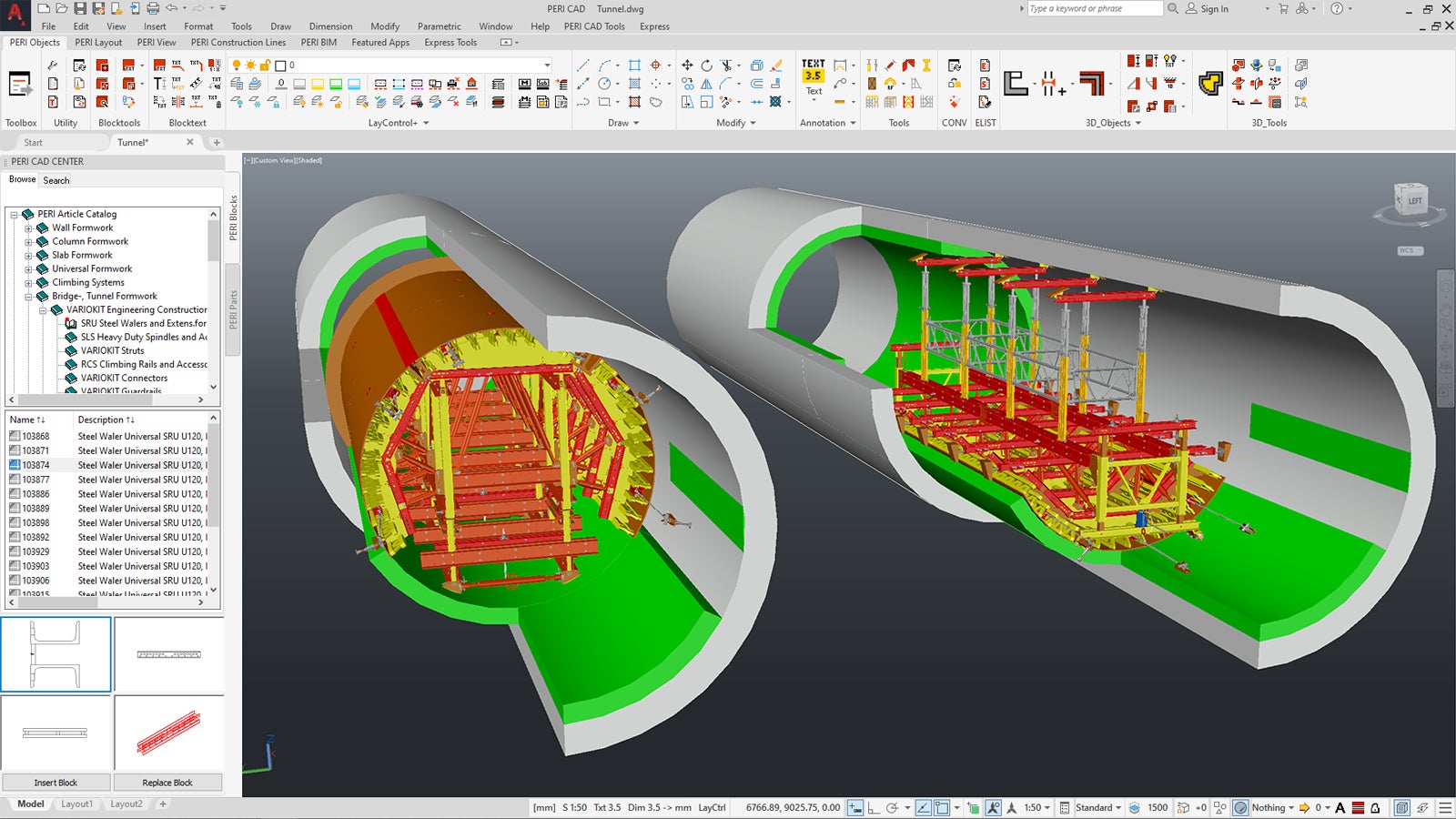

  • Quickly create detailed planning. The illustration above shows details from a 3D tunnel formwork design.
    Reduced costs

    through accurate planning of quantities and optimized construction sequences

Software requirements

Variations

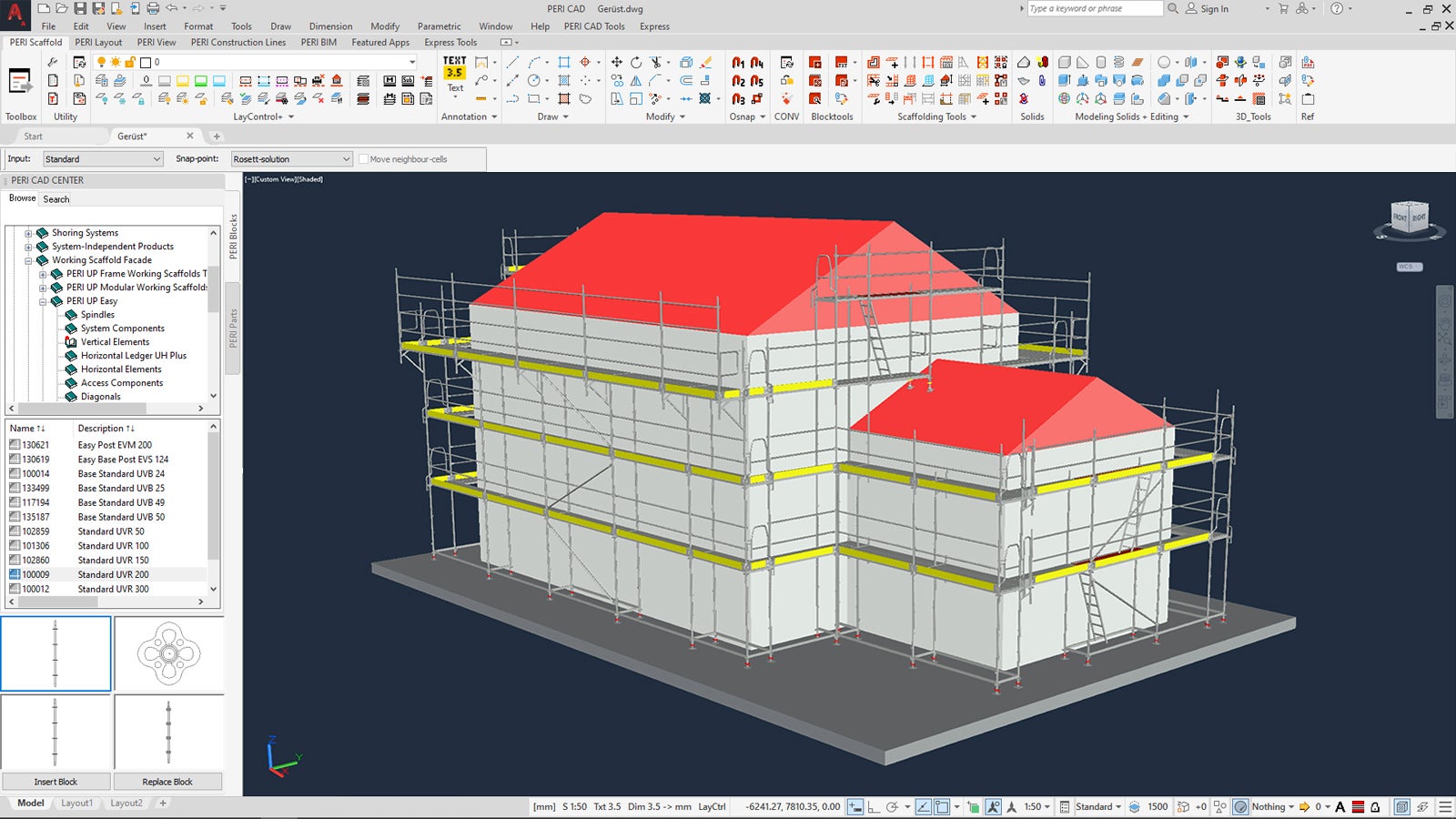

  • Automate the design with PERI facade scaffolding systems by PERI CAD.​
    Scaffolding Systems
    Facade Scaffold PERI UP T72 / T104, PERI UP Rosett R72 / R104, PERI UP Flex, PERI UP Access Stairs Aluminum / Steel Reinforcement Scaffold PERI UP Flex All other PERI formwork systems must be planned manually, e. g. PERI UP Easy
  • Find the PERI components in the PERI CAD Center you need to generate your individual formwork design in 3D.
    Formwork Systems
    TRIO 270, TRIO 330, DOMINO 250, DOMINO 275, DOMINO 300, MAXIMO 270, MAXIMO 330, DUO 135, VARIO Standard and FB 180 SKYDECK, MULTIFLEX Girders, Props, Push-Pull Props, RUNDFLEX, RUNDFLEX Plus, GRV and Timber Lightweight shoring systems: PERI UP Flex, PERI UP Flex MDS-K, MP Tower, ST 100, PD 8; heavy-load shoring systems like HD 200 and VST All other PERI formwork systems must be planned manually
