PERI UP Flex Stair Steel 100,125: For high requirements regarding load bearing capacity and accessibility.

PERI UP Flex Stair 100 / 125

Flexible site access, quick to assemble with the highest levels of safety


The PERI UP Steel staircases are part of the wider PERI UP scaffolding kit.  Using the majority of standard PERI UP parts, the staircases are rapid to assemble and dismantle, safe during every stage of use and dependable time after time.

With self-locking ledgers, uplift protection on decks, and entirely flexible arrangements to suit all geometries, traffic flows freely and safely when using the staircases.  The perforated decks are gap-free and drastically reduce the chances of slipping when using the stairs.

The system is assembled using stringers and individual stair treads. The 10-legged stair tower with heights of up to 50m is designed for a load of up to 3.0 kN/m². With 100 cm or 125 cm step widths and separate landings, the site staircase is ideally suited for large numbers of users.

PERI UP Flex Stair 100 / 125 in action

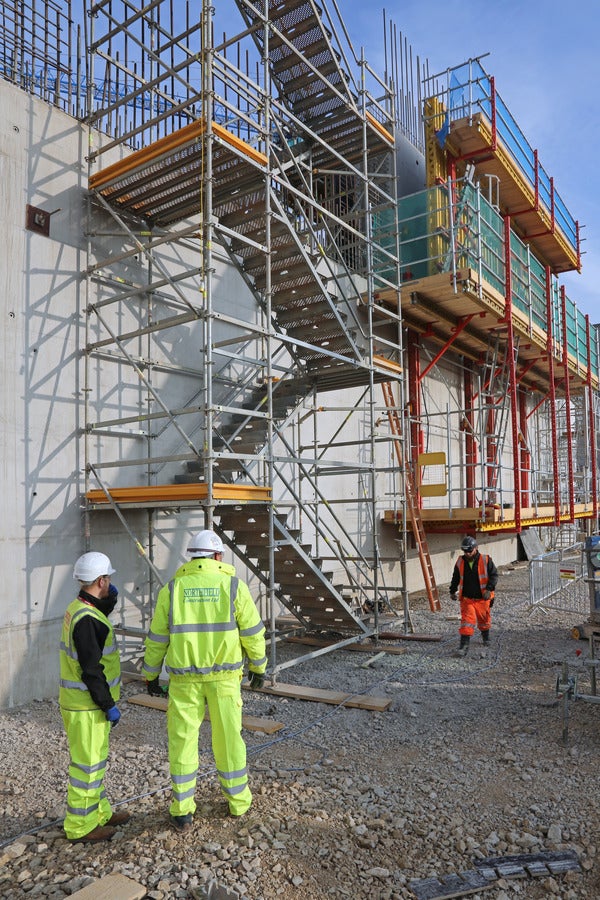

  • High load-bearing capacity designed for loads of 3.00 kN/m² for a run of staircase and landing of 20 m.
    High load-bearing capacity

    Designed for loads of 3.00 kN/m² for a run of staircase and landing of 20m.



    Project: Rolls Royce

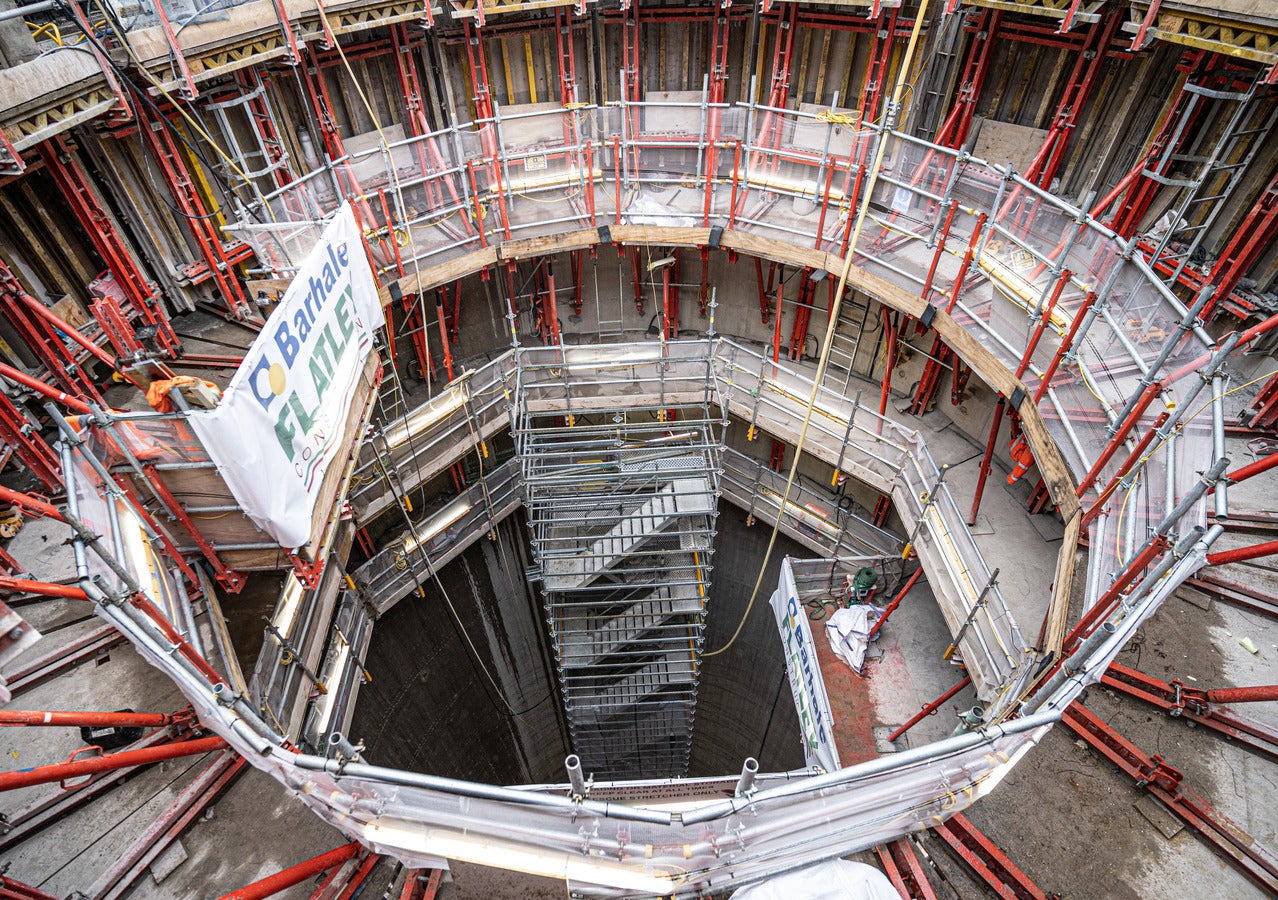

  • The lightweight individual steps are quickly installed: they interlock during assembly and secure automatically.
    Assemble quickly without tools

    The lightweight individual steps are quickly installed and interlock during assembly, securing automatically.



    Project: Thames Valley, Victoria Embankment

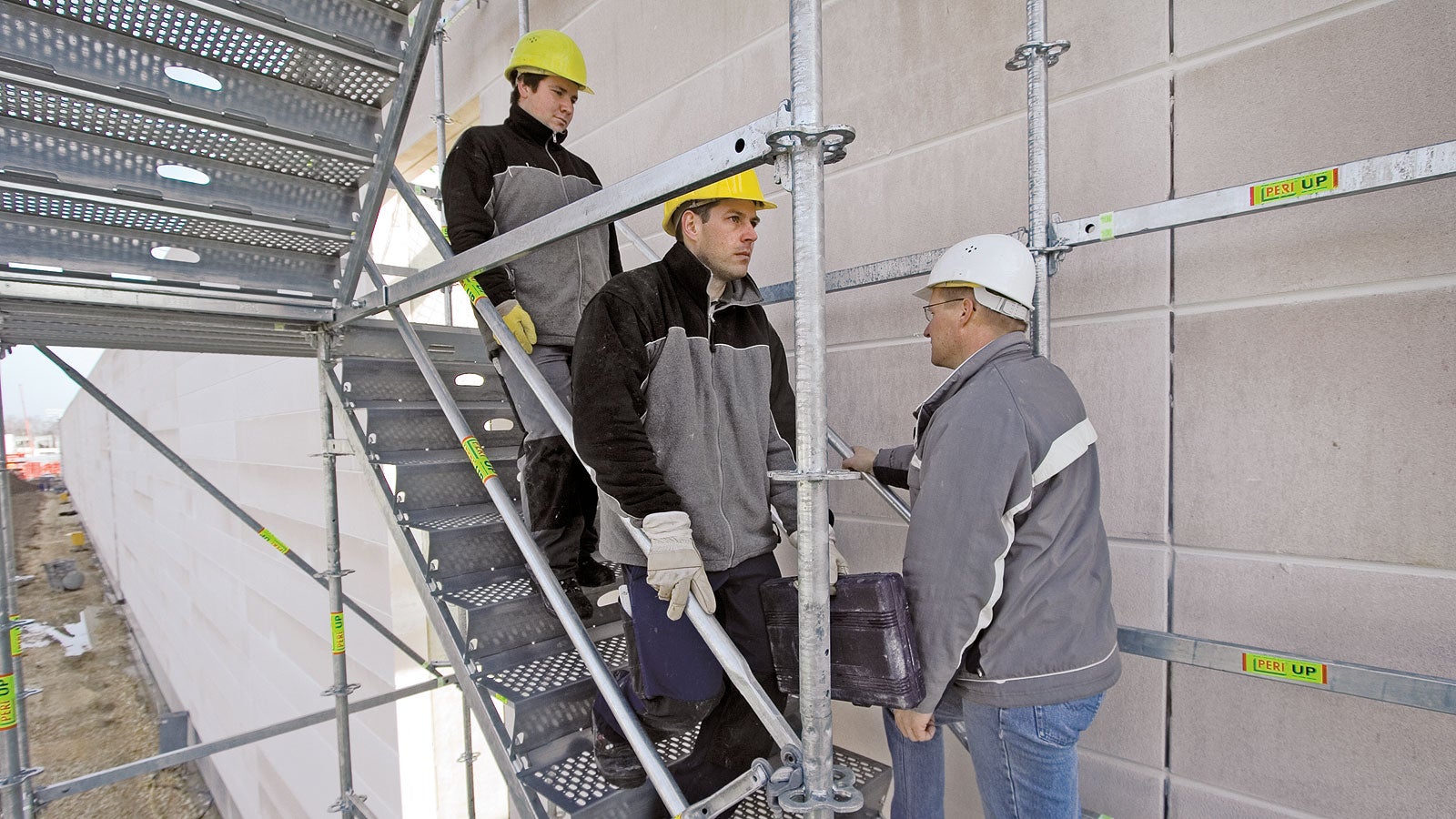

  • PERI UP Flex Stair Steel 100,125: Site personnel meeting on the Site Staricase Steel 100 can easily pass each other.
    Free-flowing traffic for an efficient site

    Sufficient space is provided for site personnel to pass each other making the transport of materials and tools quick and safe

Product Data Sheet

Technical specifications
Scaffold type
Scaffolding Stairs
Type of use
Access technology
Body heights
According to the rules: up to 50 meters (steel 100) up to 40 meters (steel 125)
Scaffolding grid
Metric
Type of pavement
Steel
Structure principle
The next step is firmly connected to the previous step by inserting and turning
Approval
Standard design according to EN 12810
Norm
DIN EN 12810 and 12811; load class 1 to 4 (0.75 kN/m² - 3.00 kN/m²); Load class 1 to 6 (0.75 kN/m² - 6.00 kN/m²)
Permissible load
3.0 kN/m²
Other
Adjustments to the building: 1.0 m height adjustments in the tower Flexible height adjustments via clamp rosette and bolt
Technical specifications
Scaffold type
Scaffolding Stairs
Type of use
Access technology
Body heights
According to the rules: up to 50 meters (steel 100) up to 40 meters (steel 125)
Scaffolding grid
Metric
Type of pavement
Steel
Structure principle
The next step is firmly connected to the previous step by inserting and turning
Approval
Standard design according to EN 12810
Norm
DIN EN 12810 and 12811; load class 1 to 4 (0.75 kN/m² - 3.00 kN/m²); Load class 1 to 6 (0.75 kN/m² - 6.00 kN/m²)
Permissible load
3.0 kN/m²
Other
Adjustments to the building: 1.0 m height adjustments in the tower Flexible height adjustments via clamp rosette and bolt
Standard applications
Compatible with
PERI UP scaffolding construction kit, VARIOKIT engineering construction kit
Other
Horizontal ledger can be mounted in advance; Gravity Lock secures ledgers as soon as they are inserted into the scaffolding node; integrated pad protection; Use of standard handles with pressed-in tubular pins
Standard applications
Compatible with
PERI UP scaffolding construction kit, VARIOKIT engineering construction kit
Other
Horizontal ledger can be mounted in advance; Gravity Lock secures ledgers as soon as they are inserted into the scaffolding node; integrated pad protection; Use of standard handles with pressed-in tubular pins
