SB Brace Frame in action
-

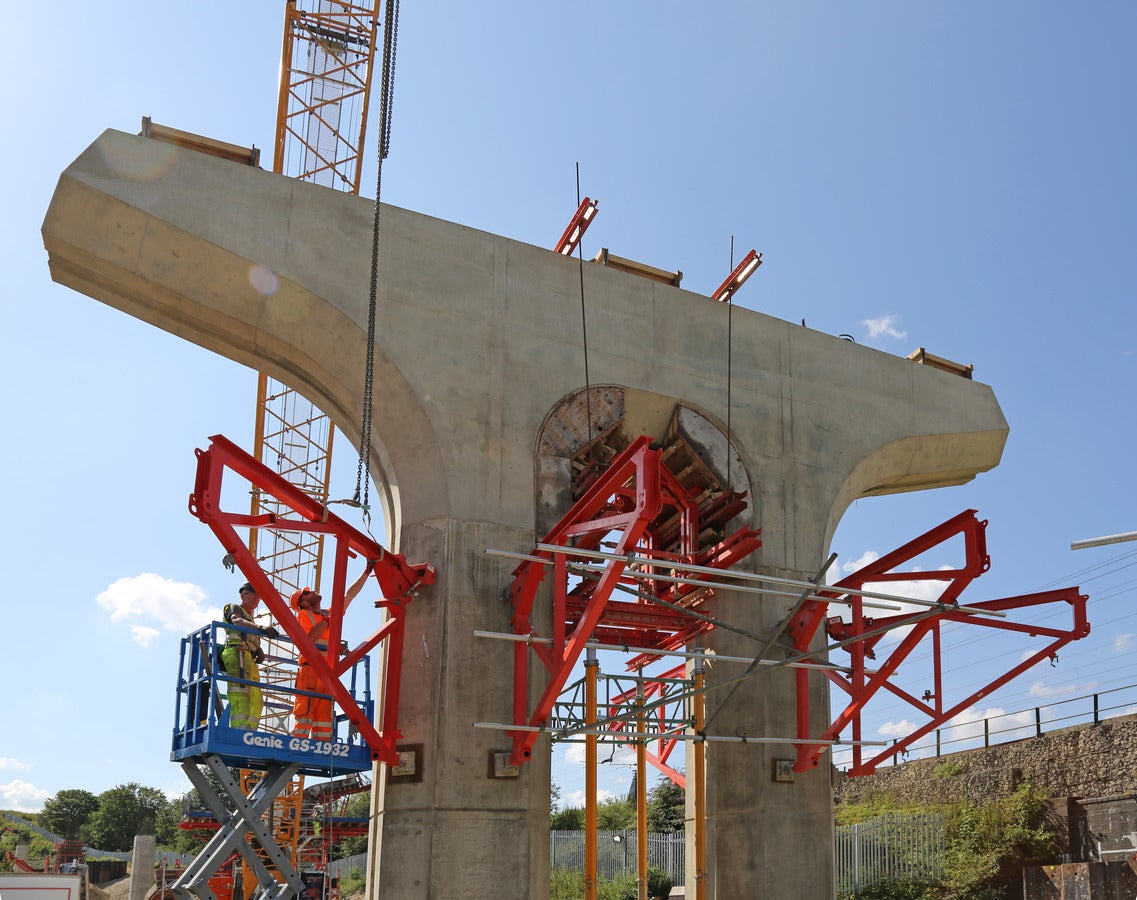

![Very versatile use with all PERI wall formwork as well as horizontal heavy-duty brackets.]( "Luton DART Rail Link")
Highly versatile systemIntegrates with PERI wall formwork systems as well as horizontal heavy-duty brackets for complex infrastructure and building projects
Project: Luton DART Rail Link
-

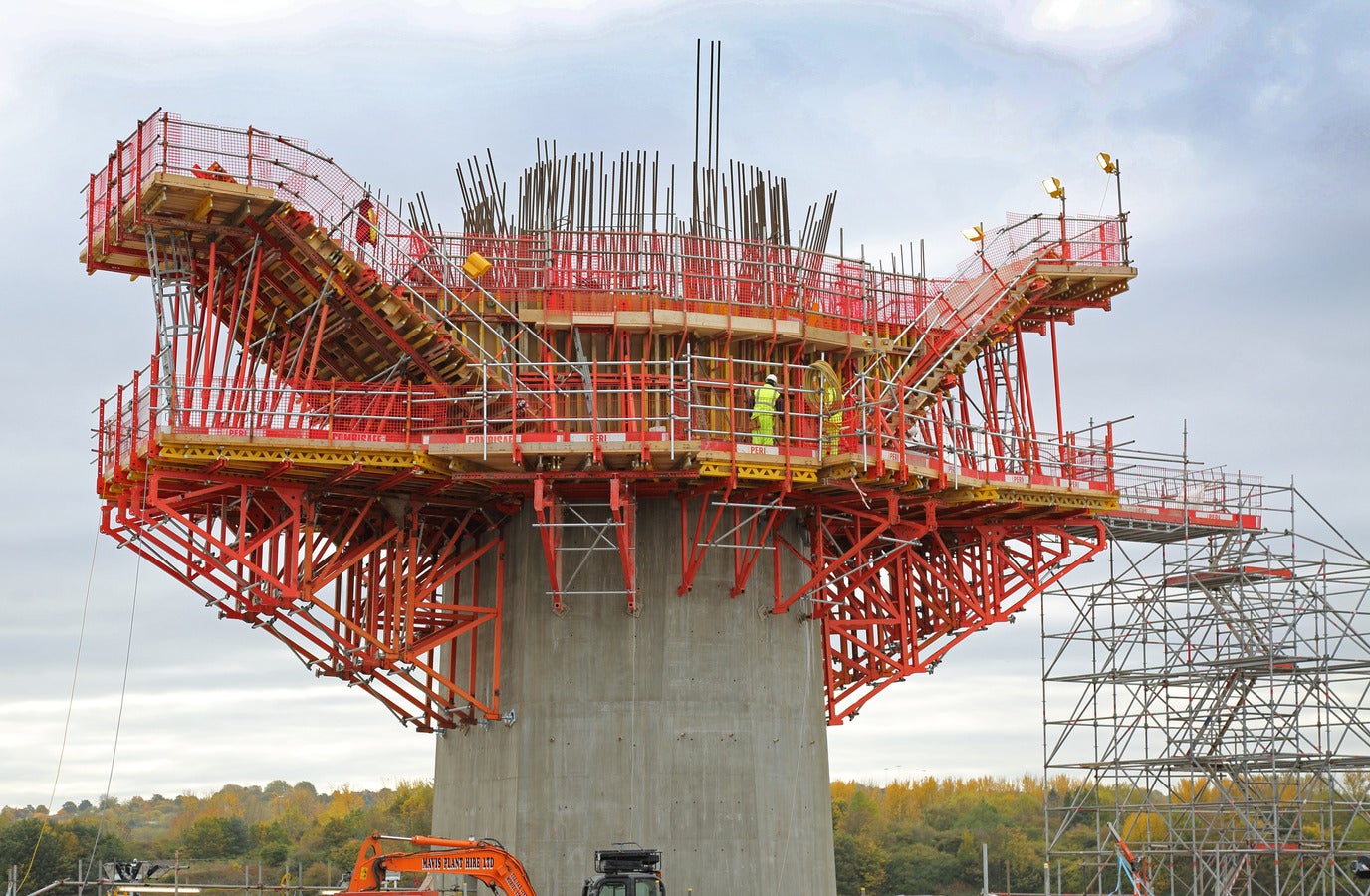

![as all required connection parts are already mounted on the Brace Frame.]( "Quickly connected without additional components")
Rapid connections with minimum componentsConnecting parts are already mounted on the Brace Frame to ensure fast and smooth assembly and dismantling operations on site
Project: Mersey Gateway
-

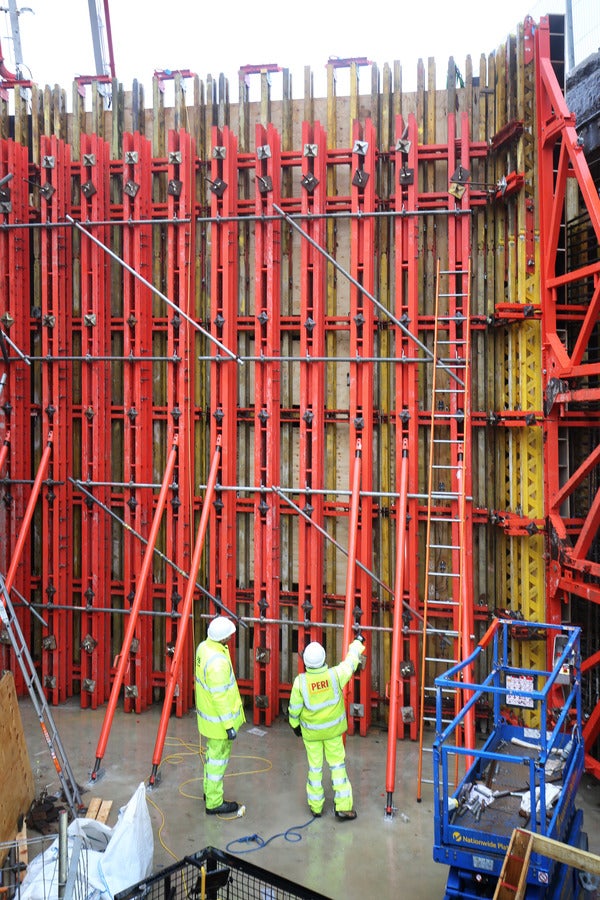

![Easy to transport through matching the individual component geometries to suit truck and container dimensions.]( "Regent Street Flyover")
Easy transportationEach individual component can be configured to suit truck and container dimensions.
Project: Regent Street Flyover
Product Data Sheet
System type
Support Frame
Fresh concrete pressure
Can be used up to 60 kN/m²
Load
Tensile and compressive force: DW 15 anchor system: 180 kN, DW 20 anchor system: 300 kN, DW 26 anchor system: 500 kN
Other
With the PERI V-tie holder and the advance coupler, the tie rod can be installed precisely at an angle of 45°. This means safe load transfer and thus maximum stability for the support frame and formwork.
Interested in using SB Brace Frames for your project?
Please contact us via phone: 1234567
