Supporting structures cost-effectively erected with system – with materials and expertise from a single source

VARIOKIT Engineering Construction Kit

A modular civil engineering kit to provide cost-effective and versatile solutions

VARIOKIT cleverly combines a standardised kit of components that are suitable for a wide range of applications in civil engineering. The construction kit includes versatile core and supplementary system components with system specific functions. If required, specific special components are also designed.

Due to the possibility of combining with PERI formwork and scaffolding systems, this results in customised, economical bridge and tunnel formwork as well as other civil engineering solutions.


VARIOKIT Engineering Construction Kit in action

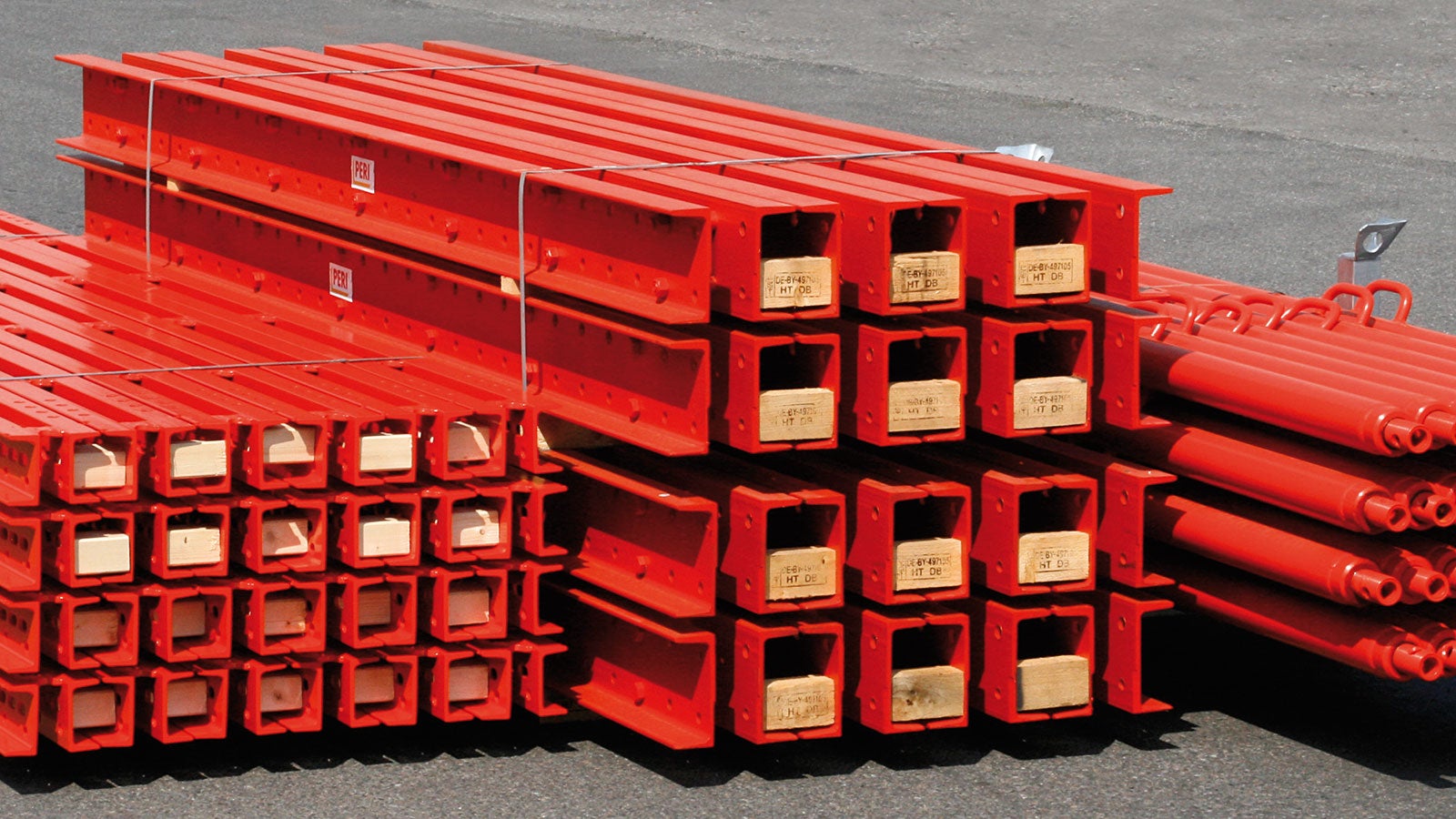

  • The core components of the VARIOKIT engineering construction kit: steel walers, climbing rails and heavy-duty spindles.
    Minimised assembly time

    Fast working on site is possible due to simple pin connections and adaptation with spindles.

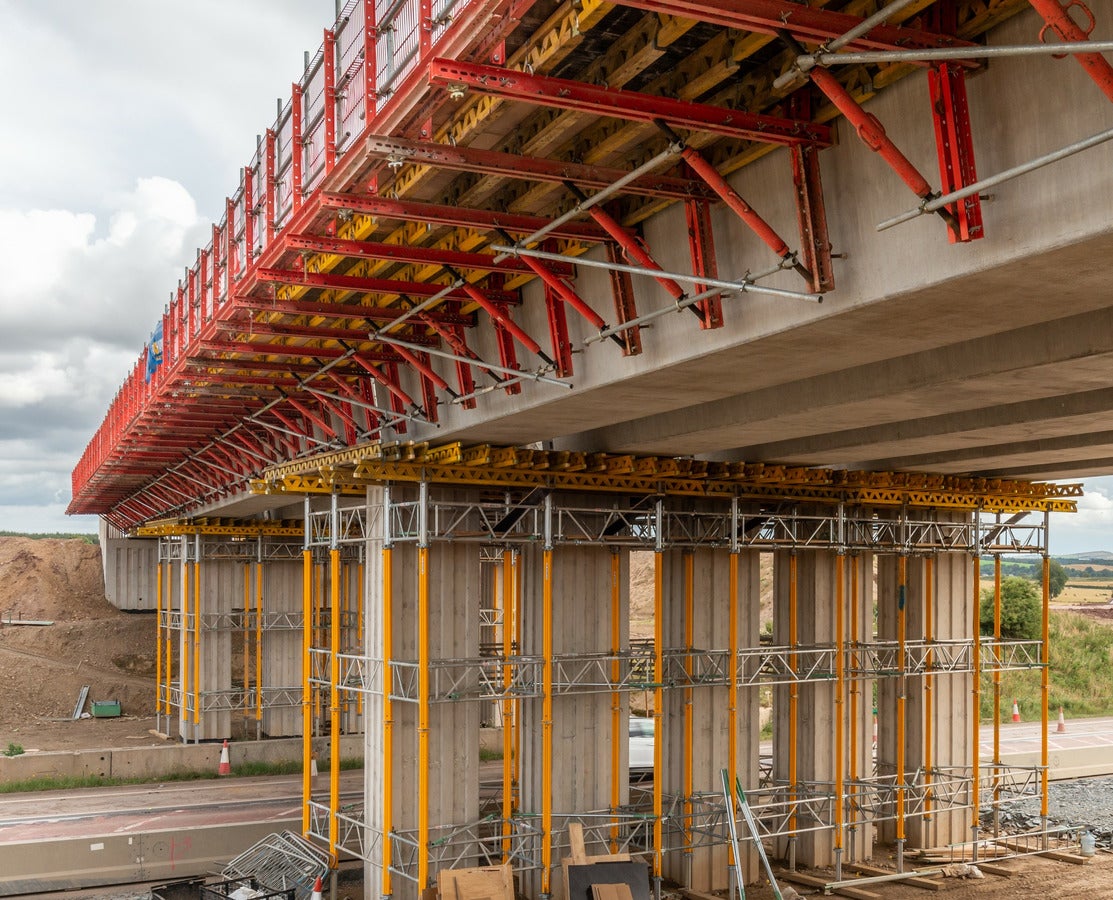

  • This supporting formwork solution consisting of VARIOKIT system components ensures safe transfer of loads for the construction of cantilevered slabs.
    Countless possibilities

    Bridge, tunnel and civil engineering solutions with core and functional system components.

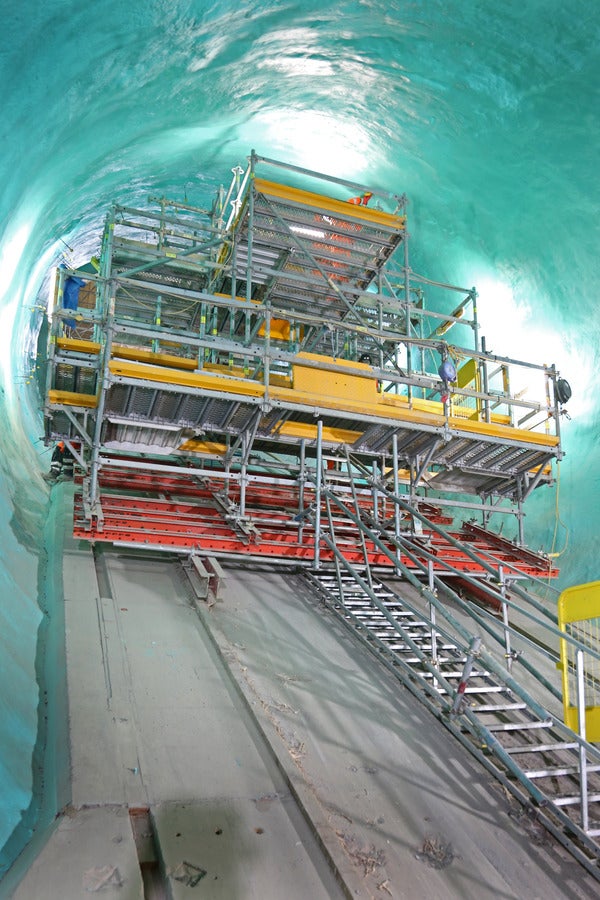

  • Raised formwork units comprised of system components from the VARIOKIT engineering construction kit support a PERI UP load-bearing scaffold. The heavy-duty spindles allow optimal adaptation to suit the inclined contact areas.
    Cost-effective for any project

    A mixture of rentable standard components and maufactured specials combine with our wider PERI range to produce the ultimate versatile engineering kit solution



Used on world-class projects across the globe

With the VARIOKIT standard components, technically demanding trusses and load-bearing systems can be cost-effectively executed. In order to minimise on-site assembly times and maintain tight construction schedules, we can also provide pre-assembled units to the construction site. Renting the components along with the assembly advantages makes VARIOKIT extremely economical, especially with short utilisation times.

  • VST Heavy Duty Tower
  • VRB Heavy Duty Truss Girder


Tunnel Construction

With VARIOKIT system components, cost-effective tunnel formwork carriages can be realised which are precisely adapted to meet the needs of the respective job site. Requirements such as drive-through openings for trucks or single-sided wall formwork are easily fulfilled. Additional components for lifting, lowering and moving are available in the rentable PERI portfolio as are safe working platforms and access means. Required technical accessories, e.g. concrete pump connections, complement the VARIOKIT solutions.

  • VTC Tunnel Carriage


Bridge Construction

The VARIOKIT Engineering Construction Kit includes suitable system solutions for bridge superstructures and cantilevered parapets. The portfolio ranges from lightweight brackets to complete formwork carriage and equipment solutions.

  • VCC Composite Formwork Carriage
  • VCB Cantilever Bracket
  • VARIOKIT Balanced Cantilever Equipment VBC
  • VGK Cantilevered Parapet Bracket
  • VGB Cantilevered Parapet Track
  • VGW Cantilevered Parapet Carriage

With VARIOKIT core and system components, heavy-duty shoring towers and wide-span lattice girders can be systematically assembled. Also for other construction tasks where high loads are to be transferred, VARIOKIT is the optimal system.

Providing the overall solution from one source ensures reduced complexity and improved efficiency during the course of the project. Through the connection possibilities for the PERI UP modular scaffold, secure access to all working areas and the working surfaces is easily integrated.

  • VST Heavy Duty Tower
  • VRB Heavy Duty Truss Girder
