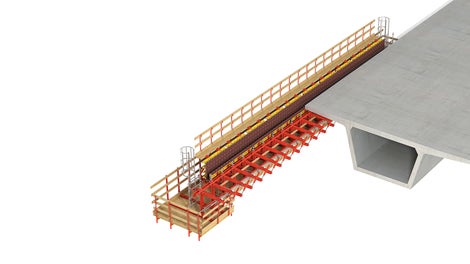

The mobile solution installed below for bridges over 150 m long

VARIOKIT VGB Cantilevered Parapet Track

The mobile parapet solution installed below for bridges over 150m long

The VARIOKIT Cantilevered Parapet Track is used for the construction and refurbishment of cantilevered parapets at the edge of bridges for superstructures over 150m.

The VGB consists of core components taken from the VARIOKIT Engineering Construction Kit which are supplemented by functional system components such as the Roller Unit. As a result, the parapet track is highly flexible for an array of bridge geometries, including on short cantilevers.

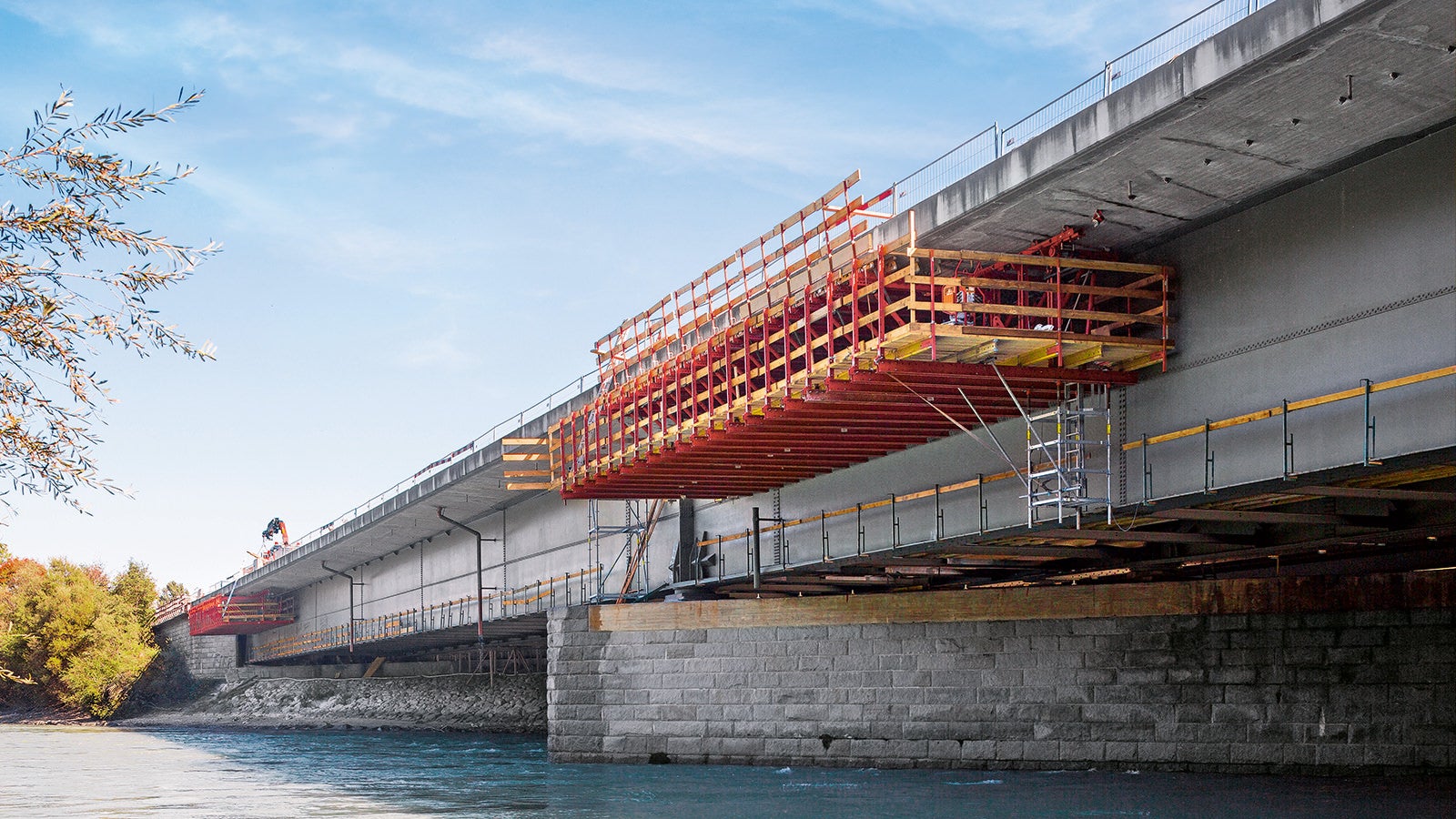

The cleverly designed VGB suspension ensures a safe transfer of loads in all conditions; also when concreting, no additional fixings on the superstructure are required. Through the anchoring to the underside of the bridge, the top of the bridge is freely accessible. As a result, construction site traffic is not affected and work operations can be carried out on and under the bridge during moving traffic.

VARIOKIT VGB Cantilevered Parapet Track in action

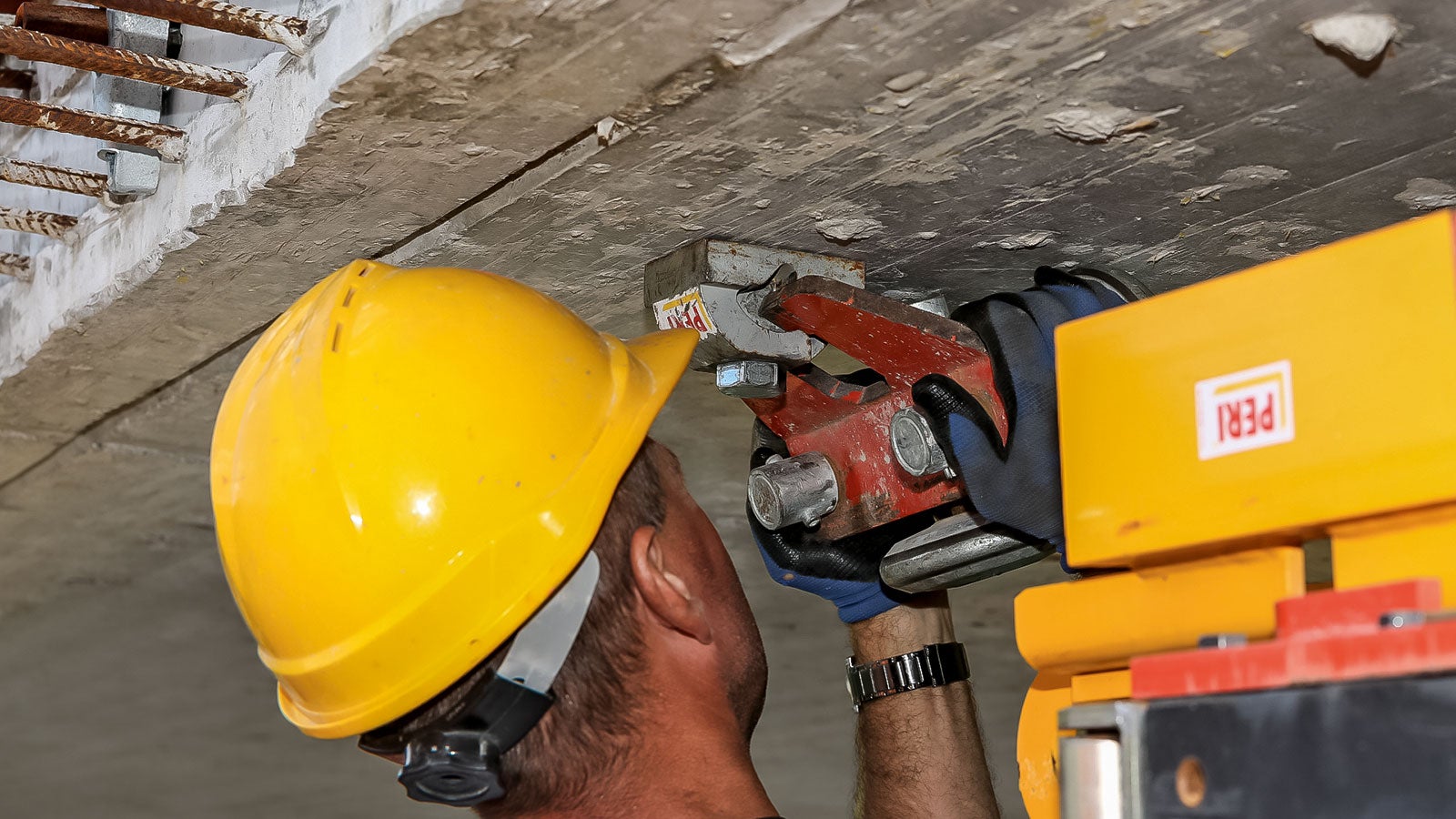

  • The rollers to be freed up are dismantled from the finishing platform and re-mounted in the moving direction at the front from the leading platform.
    Optimised for your project

    A highly adaptable system based on the VARIOKIT Engineering Construction Kit which provides a modular and very cost-effective parapet solution

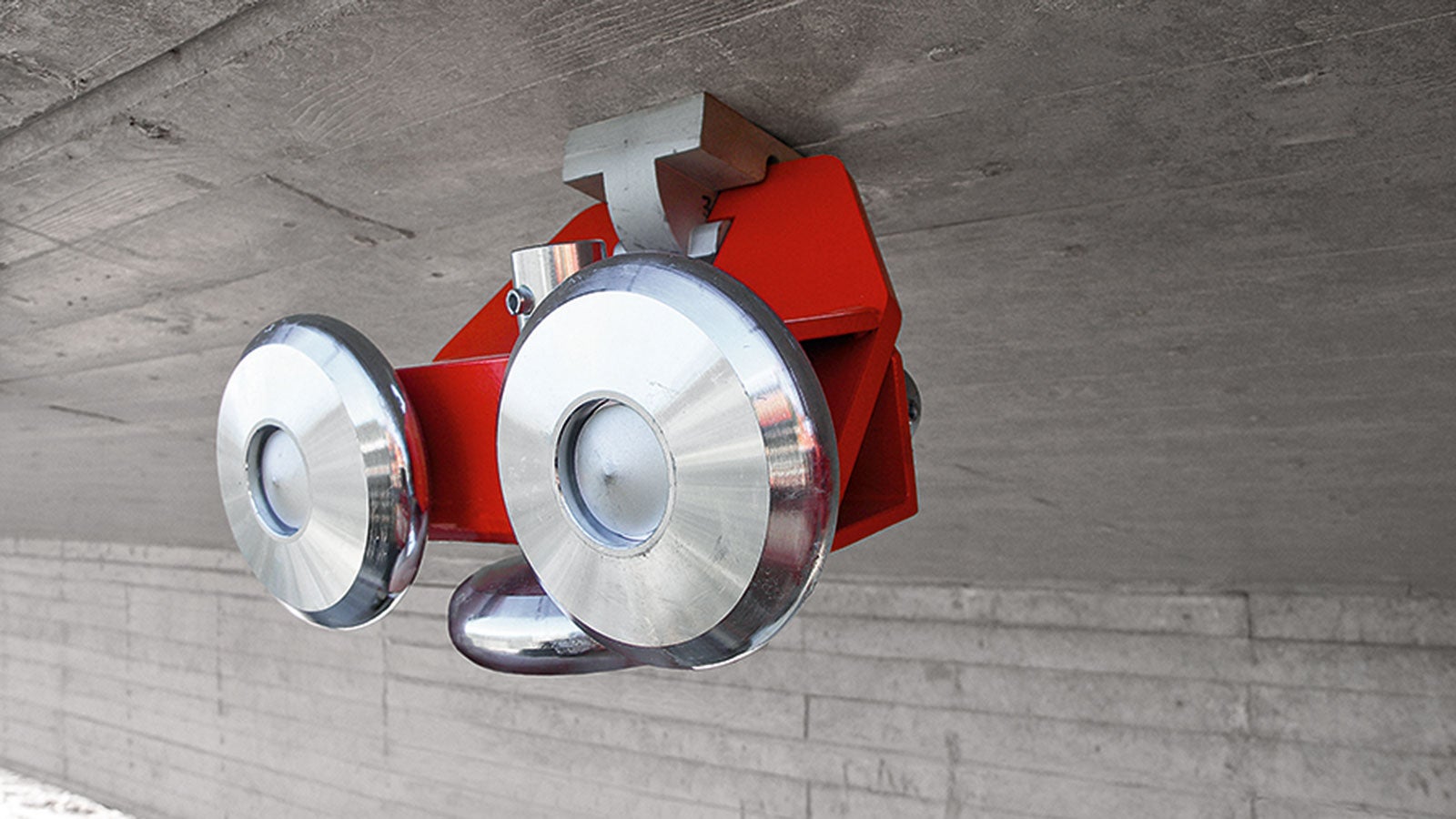

  • The Roller Unit is self-aligning and reliably transfers the concreting loads.
    Fast work operations

    Additional anchoring is not required because the Roller Unit safely transfers the concreting loads.

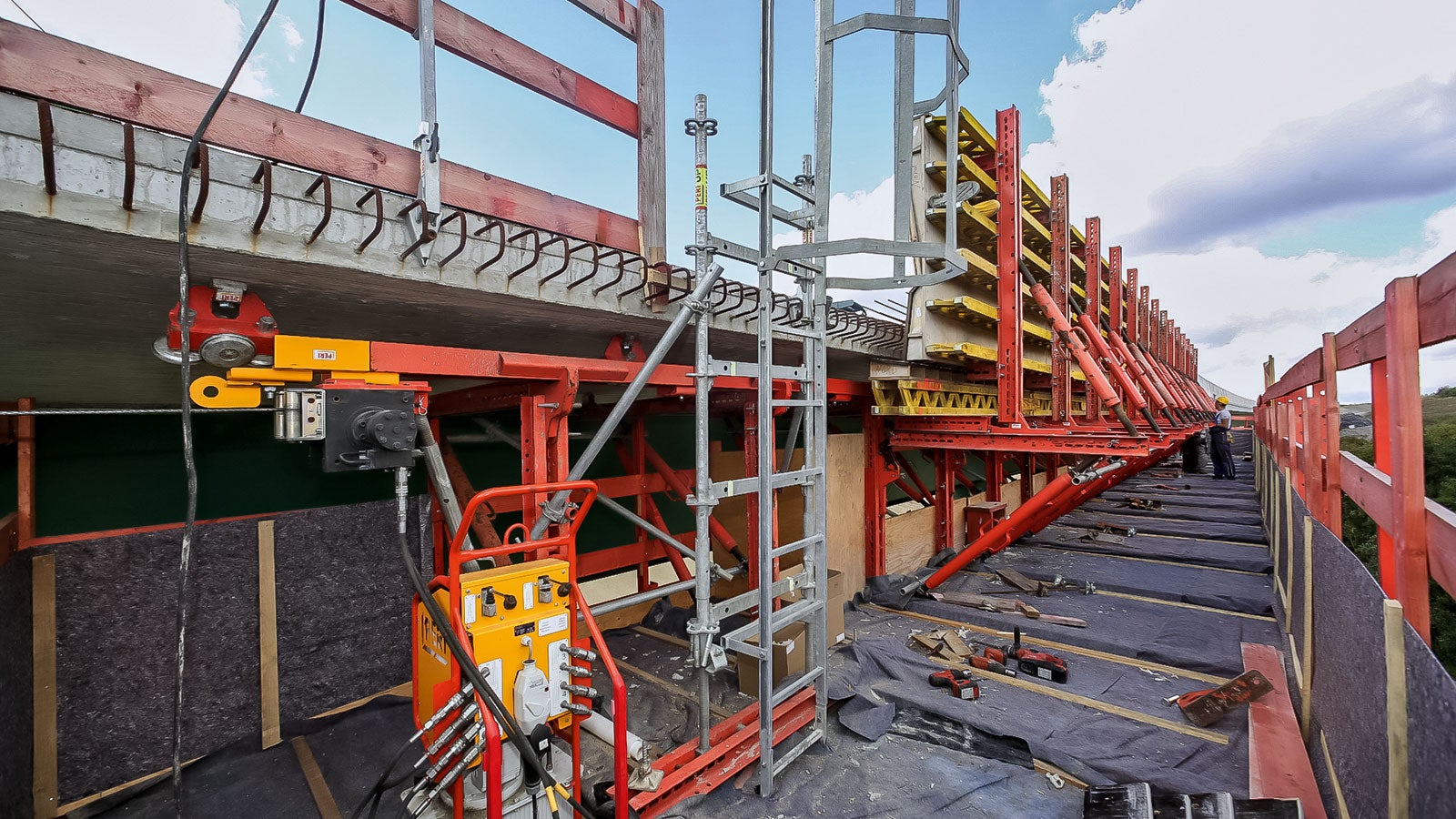

  • The rail units can be moved by means of hydraulic winches and the RCS Hydraulic Pump.
    A complete system solution

    Formwork, access and anchor technology from a single source.
