Naganathapura Plant, Bangalore
Project data
Naganathapura Plant was established in the year 1989. Among the other Bosch Limited Plants in India, it is the 3rd Bosch Plant. The major products being manufactured in this plant are Spark Plugs, Starter Motors, Alternators, Generators and some products of Gasoline Systems.
Requirements
- Formwork system for walls, columns, slab and beam
- Columns are required to be cast for 10m height in one go
Customer
Senthuran Construction Company
Mr. J Chandrashekar
Proprietor - Senthuran Construction Company
Proprietor - Senthuran Construction Company
We have achieved very good quality even though structural design for this project was very critical. The Senthuran Construction Company had decided to use PERI system as the design was challenging and time bound. We received good results than what we expected as PERI system completely suited our project. PERI team was very supportive to meet our challenges and we have decided to go with PERI systems for further projects as they made us feel comfortable and good growing in the Constructional Technology
PERI solution
- PERI has supplied VARIO Formwork system for walls & columns, MULTIFLEX system for slab & beam.

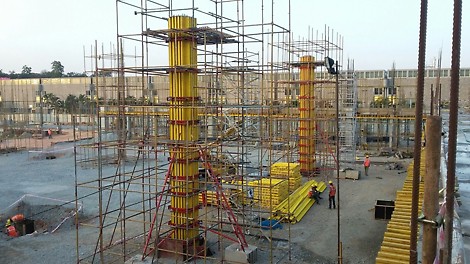

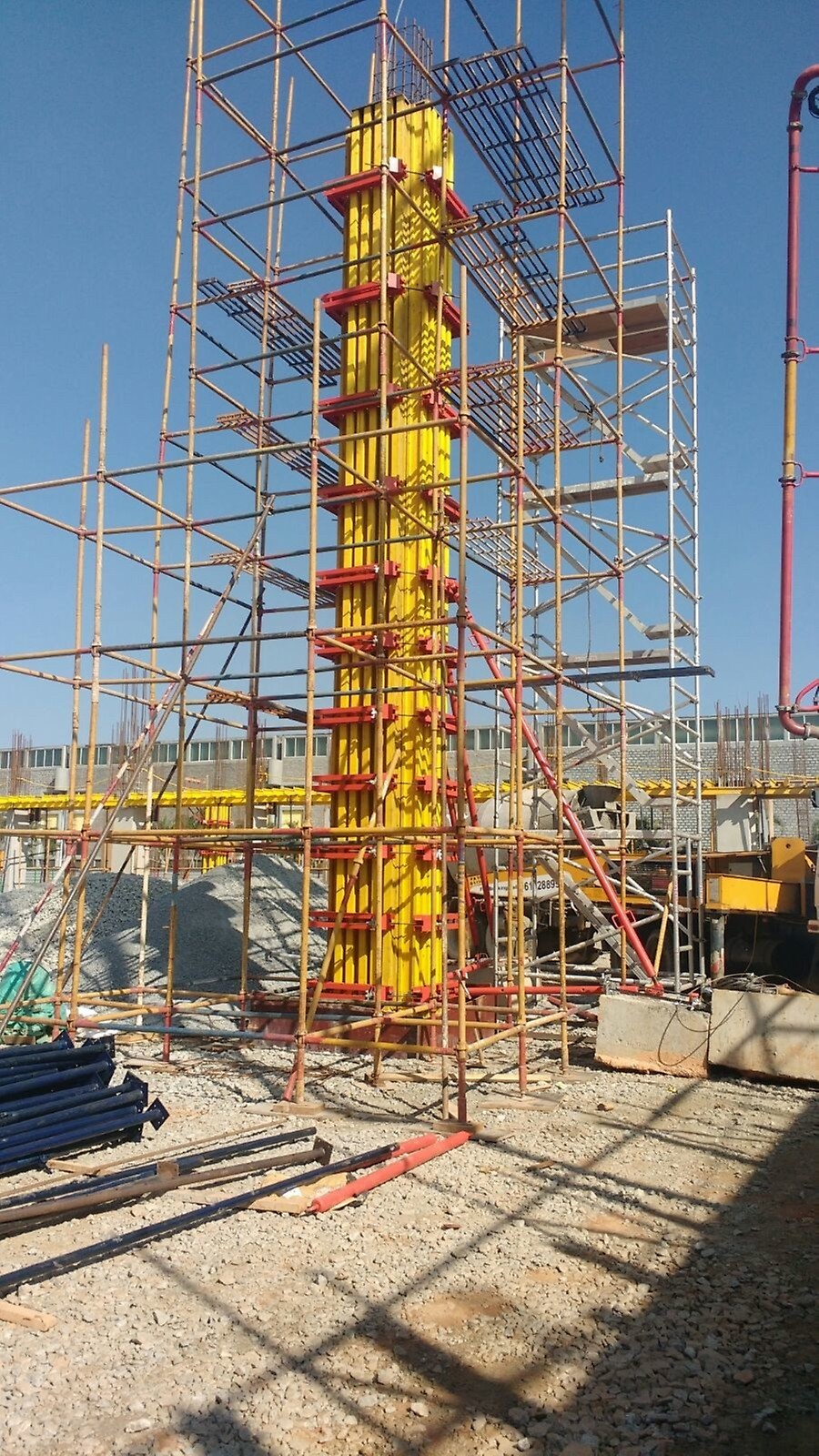

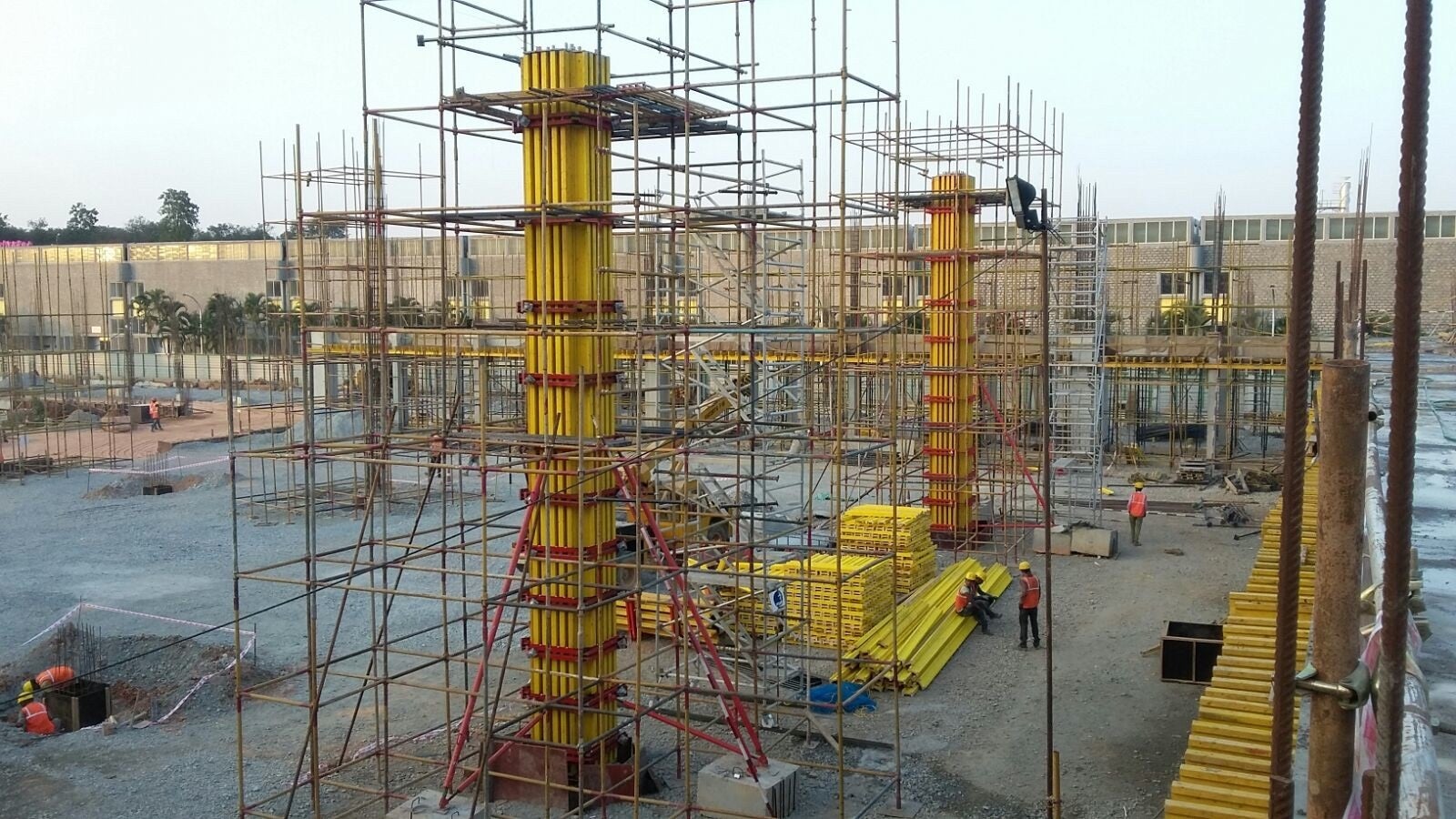

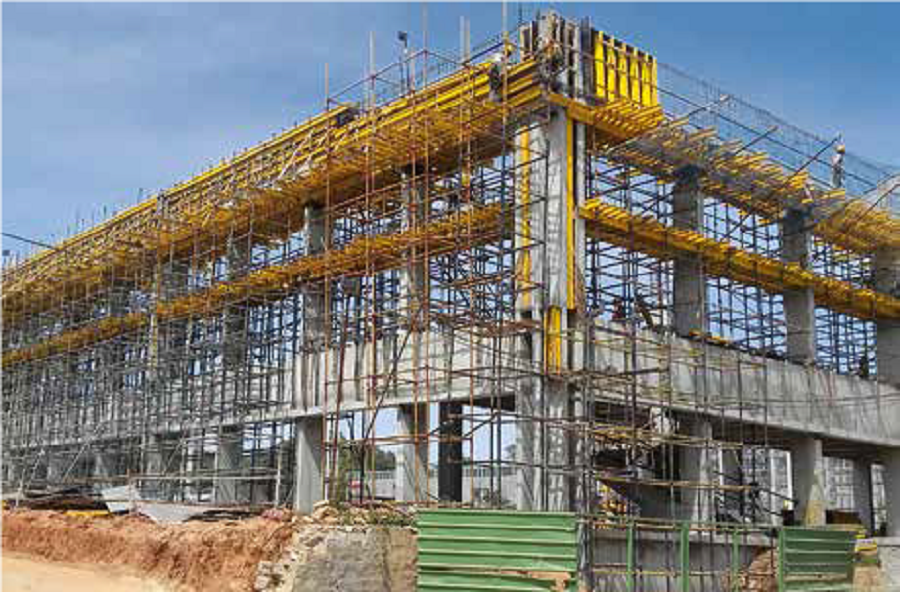

- Special requirement from client was to cast 10 m column in one go, with the help of VARIO Column Formwork this was achieved with concrete pressure of 150 kN/m². Since it was a power plant project, slab & beam layout was not uniform. Maximum depth of beam was 1.875 m. With the help of MULTIFLEX slab & beam formwork, casting of non regular structure was carried out successfully.
